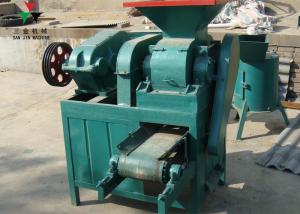

Wood Coal Ball Press Machine

Name: Wood Coal Ball Press Machine
Brand: Sanjin, sanjin machine
Price: 2 USD

Quality Wood Coal Ball Press Machine wholesale

Brand Name : Sanjin, sanjin machine

Model Number : T360

Certification : ISO

Place of Origin : Henan, China, Henan, China

MOQ : 1 Set/Sets

Price : $2,100.00 - $3,000.00/ Set

Payment Terms : L/C, T/T, Western Union

Supply Ability : 20 Set/Sets per Month

Delivery Time : 3-7 days

Packaging Details : wooden box

Voltage : 380/400/415/Customized

Power(W) : 7.5kw

Weight : 800kg

Dimension(L*W*H) : 1.3*1.35*1.4m

Usage : BBQ

Material : charcoal powder

Roller Dia : 360 mm

Power : 7.5 kw

Raw material : Charcoal Powder

Name : dry charcoal powder ball press machine

After-sales Service Provided : Engineers available to service machinery overseas

capacity : 1-3t/h

Contact Now

Charcoal Powder Briquette Plant Wood Coal Powder Ball Pressure Machine

Technical parameters:

Model	Roll dia&width	Speed of main shaft	Power	Capacity
T290	290*200mm	12-14r/min	5.5kw	0.8-1T/h
T360	360*250mm	12-14r/min	7.5kw	1.5-2T/h
T400	400*250mm	12-14r/min	11-15kw	2.5-3.5T/h
T500	500*470mm	10-12r/min	18-22kw	7.5-8.5T/h
T650	650*470mm	9-11r/min	20-30kw	9-10T/h

Above technical parameters are for reference,can be separately designed according to customer`s actual situation.And we can manufacture briquette machine whether with oil pump as your demands.

Product Description

Charcoal making machine/coal briquette machine/ball press for sale

Charcoal making machine/coal briquette machine/ball press for sale is used for aliuminum scrap powder,fly ash,coke powder,cast iron,charcoal powder,gypsum powder,coal fines, ore fines, desulfurization gypsum, iron fines, mill scale, fluorite powder, manganese ore finesand other material fines into briquette. This briquette machine is widely used in coal industry and metallurgy industry etc.

Work principle :

Motive power will transmit to two rollers through the reducer synchronously and make them rotate oppositely. Materials enter into ball mode naturally, with rollers rotation, pressure of materials bearing becomes larger. When arriving at two rollers contact point, materials bearing pressure reaches peak. Under the tremendous pressure, materials become ball shape from powder shape.

Features

A:High pressure,strong stability, and resist wear-resisting, high production quality, good performance, easy to use, economize investment, get quick returns.
B:Materials made by briquette are energy saving and environmental protection, and easy to transportate.it has a good economic and social benefits.
C:There briquettes can be designed of round ball shape, oval shape, oblateness, pillow shape,elongated shape, square shape.(briquette could also be designed according to the customer requirements.)

D:Professional powder materials briquette machine manufacturer.

E: High briquetting efficiency

Raw Materials and request of briqette machine:

Size: It's better to be less than 3mm(not a big block). If not, crusher is needed.
Uniformity: Mixer may be needed to make materials homogeneous.
Moisture content: 9-12%. If higher than this, rotary dryer is needed.

Detailed Images

Our Company

Gongyi city sanjin charcoal factory was built in 1988, is located in gongyi city in henan province. Is a technology leading enterprises, the People's Republic of China import and export enterprises, charcoal machine won the national patents 10.Company main products: charcoal, charcoal machine automation equipment, series of straw gasifier, straw gasification, carbon powder molding machine, grinder, sawdust dryer, stick machine, such as coking furnace large biomass equipment production line.

Our Service

1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.

FAQ
Except the technical data, how to avoid operation failure is very important. The reason cause the operation failure to the briquette machines must first.
1. Operation failure by man:
* Inappropriate storage of the briquette making machines by operator, unreasonable operation, which worse the machine performance and shorten the service life , then finally cause the operation failure.
* Operator are short of professional maintenance skills, during maintenance, they broke the machine.
2. The damage of the natural service life:
Since the production of equipment belongs to the continuity of movement in the process of production, thus mechanical and physical aspects of the transmission parts of briquette machine need to bear the chemical reaction of electric power in the production. After long time of operation, its ability to resist failure will gradually decline and results in manufacturing fault when it reaches a certain limit under force.
Then how to avoid the operation failure:
Step1: We just need to train the operator how to operate and maintenance the briquette making machine, reduce the artificial operation failure to natural service.

Step2: Then study the natural recession cycle of move parts of sawdust briquette machine for sale and replace or repair the parts in a timely manner according to the service life of the natural cycle to achieve foreseeable failure eradication effect and keep the production of sawdust briquette machine in permanent zero malfunction.
