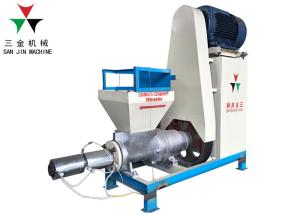

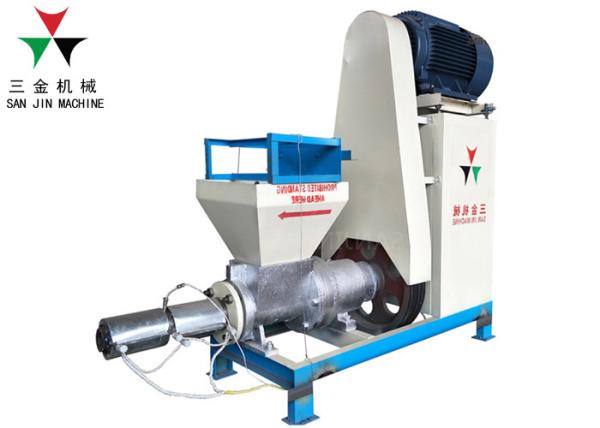

Rice Husk Biomass Briquette Making Machine For Burning Boiler

  • 1
  • 2

Brand Name : sanjin

Model Number : 500

Certification : CE ISO

Place of Origin : Henan, China

MOQ : 1 Set/Sets

Price : $1,600.00 - $3,000.00/ Set

Payment Terms : L/C, T/T, Western Union

Supply Ability : 10 Set/Sets per Month

Delivery Time : 3-7 days

Packaging Details : wood box

Type : Briquette Machines

Condition : New

Production Capacity : 360-460kg/h

Power(W) : 22kw

Raw material : Rice Husk,wood waste, sawdust,biomass

Briquette shape : Square, hexagon

Application : Barbecue (BBQ), Burning Boiler, Cooking

Keyword : charcoal briquettes machine

Voltage : 380V 50HZ

Usage : making briquette as fuel, bbq

Weight : 700kg

Dimension(l*w*h) : 1.9*0.6*1.5m

Contact Now

Factory Supply Biomass Rice Husk Briquette Press Machine/Charcoal Briquette Making Machine/Briquette Production Line
Technical parameters:
Model
IV
V
80
500
Power
15KW
18.5KW
22KW
22KW
Capacity
140-200kg/h
220-260kg/h
500-550kg/h
360-460kg.h
Dimension
1.67*0.68*1.55m
1.67*0.68*1.55m
1.9*0.68*1.6m
1.9*0.68*1.6m
Diameter of briquette
50mm
50mm
80mm
50,60,70,80mm
Intel particle size
≤5mm
Raw material moisture
8-12%


Introduction:
The principle of sawdust wood charcoal briquette making machine

The sawdust wood charcoal briquette making machine is to process sawdust, straw(corn straw, soybean straw, sorghum straw, cotton stalk, rape straw, peanut, sunflower stalk), rice husk, grasses, shrubs, bamboo head, butts, bagasse on the force of crushing from a high temperature and high pressure area produced by a screw propeller and heating laps to make those raw materials into hollow briquettes.
The sawdust wood charcoal briquette making machine has advantages of high density, small size, good flammability and can replace firewood and coal. Most of the general products are in the shape of four or six angles cylinder with 50-60 mm outer diameter and 15-20 mm aperture. The utility model can also be made into spherical, granular and honeycomb briquette.


Advantage:
1. No binder is needed during processing ,and so no pollution when it burns.
2. We have added 5-6 grooves in the machine to discharge the vapors and help increase density. Moreover, we add a wedding-ring in the machine ,which also helps to increase the density of wood sticks.
3. Wood sticks is easy for carrying and packaging .We have also design trolleys to help load the sticks.
4. The wood charcoal briquette making machine can be linked to the drier to form an automatic line .This is from our design with patent rights. It can save labour cost.

Raw material request

The size of raw material feed need to be 3-5mm, if more than 5mm, need use crusher to crush them first, the moisture of raw material should be 8-12%, or use dryer to dry them. the final product can be many shapes of bar, such as round shape, hexagon shape, square shape and so on. and the diameter of briquette can be 50mm,80mm.

Rice Husk Biomass Briquette Making Machine For Burning Boiler
Rice Husk Biomass Briquette Making Machine For Burning Boiler
Rice Husk Biomass Briquette Making Machine For Burning Boiler
Automatic Production line
If you need large capacity, one single machine can not meet your need, you can choose several sets of single machine, or use the automatic production line, the automatic production line have a large capacity ( from 800kg-2500kg/h), and it will save many workers and cost.
Our automatic line include the main machines and auxiliary Machinery .the main machine (several sets of single briquette machine) Auxiliary machine (material distributor, screw conveyor, belt conveyor, smoke disposal system, cool conveyor.
We can supply 200-300kg/h charcoal production line, 500-600kg/h charcoal production line, 800-1000kg/h charcoal production line and more capacities choice. If you are interested in our briquette machines, please click this to send us inquiry.

Specifications:

1. Supply to USA,Europe,and Australian
2. Material: rice husk,sawdust,Peanut shells, bagasse
3. Professional charcoal machine supplier
4. Energy saving


Q:Why Choose Us?
A: 1). Several Year's Experience.We have rich experience in equipment manufacturing. Our machines have high reputation both at home and abroad (Such as the Middle East, Southeast Asia, Africa and so on more than 10 countries and regions.)
2). Manufacturer, Not Dealer Factory direct sale makes price more competitive. Customers are always welcome to visit our factory for machine test.
3). Fast Delivery:We promise the goods can be shipped out on delivery date after confirmation of the order.
Q: How do I know the quality of your machine?
A: You can send your sample materials to us and we will test the machine for you without charging the fees. And we can send the machine test video to you. We also warmly welcome you to visit our factory to test our machine personally.
Q: Will you dispatch the engineer to guide installation?
A: Yes, according to the customer's requirement, we will dispatch engineers to guide installation and training about the operation of the machine.
Q: What should we do if we have problems during use?
A: We provide machine use video and operating manuals. At the same time, we also have after-sales service 24 hours online service.

Q: Can we customized motor voltage?
A: Yes.We will transform the voltage according to the customer's needs.
